Manufacturer, Supplier And Repairing Of Air Dryers, Refrigerated Air Dryers, Compressed Air Dryers, Industrial Air Dryers, Heatless Air Dryers, Desiccant Air Dryers And our setup is situated in Pune, Maharashtra, India

Prominent and trusted in the industry, Suvi Enterprises, based in Pune, offers a comprehensive range of Air Dryers designed to meet various industrial requirements. Our air dryers ensure optimal air quality, reduce operational downtime, and enhance the efficiency and longevity of your equipment.

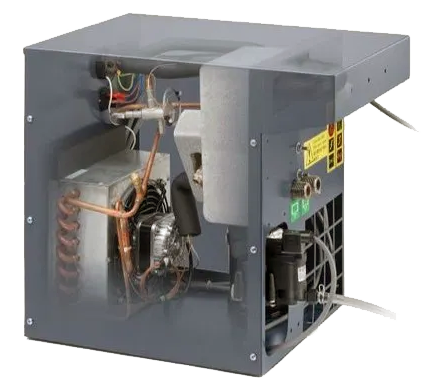

Refrigerated Air Dryers

Description :
These dryers use refrigeration technology to cool compressed air, condensing moisture and separating it efficiently.

Features :
Energy-efficient, easy to maintain, durable, and compact design.

Applications :
Ideal for industries requiring moderate dew point levels, such as automotive, textile, food processing, and general manufacturing.

Usage / Application Hospital, Painting Booth, Manufacturing Unit, PMP Machines
Drying Capacity 10 to 2000 cfm
Dryer Technology Refrigerated
Dryer Horse Power 2 HP
Dryer Brand Suvi Enterprises
Minimum Output Dew Point -30 C
Max Temperature 55-60 Degree C
Automatic Grade Automatic
Design Standard
Maximum Pressure 4 bar
Warranty 12 months
Frequency 50 Hz
Phase Single Phase
Material Mild Steel
Operating Voltage 230 VAC
Air Dryers

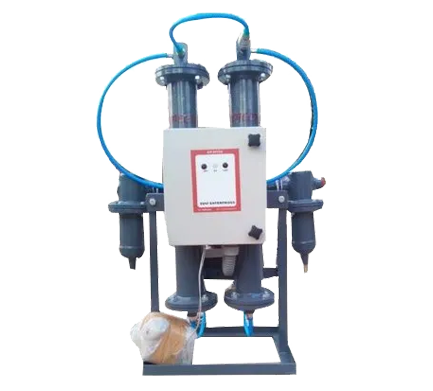

Air Dryers CFM

Compressed Air Dryers

Description :
Removes moisture from compressed air to prevent corrosion and contamination in pneumatic systems

Features :
High reliability, minimal energy consumption, and robust construction.

Applications :
Widely used in industries like pharmaceuticals, electronics, and food packaging.

Drying Capacity 5-500 cfm
Dryer Technology Dessicant
Dryer Horse Power 2 HP
Automation Grade Automatic
Dryer Brand Suvi Enterprises
Minimum Output Dew Point -20 C
Voltage 220 V
Dryer Type Refrigeration Dryer
Design Standard
Maximum Pressure 7 bar
Warranty 12 months
Frequency 50/60 Hz
Phase Single Phase
Material Mild Steel
Daisy Chain Yes
Compressed Air Dryers

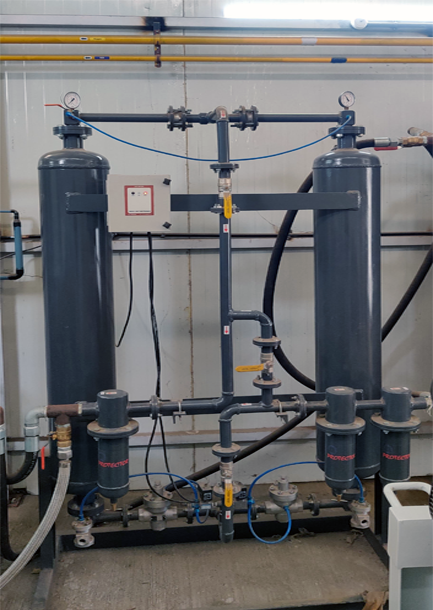

75 CFM Compressed Air Dryer

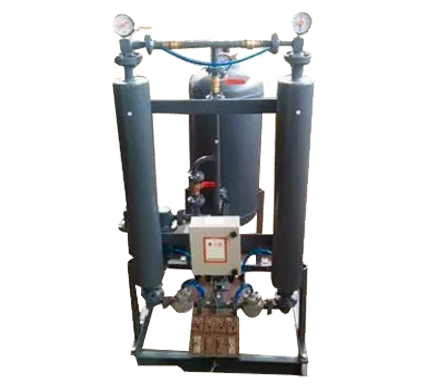

Industrial Air Dryers

Description :
Designed for heavy-duty industrial applications, these dryers deliver consistent performance even in demanding conditions

Features :
High-capacity drying, customizable specifications, and long service life.

Applications :
Utilized in power plants, steel production, and chemical processing.

Automation Grade Automatic
Voltage 230 VAC
Capacity 5 - 500 cfm
Dryer Type Regenerative Desiccant Dryer
Air Flow Rate 5 CFM TO 1000 CFM
Maximum Pressure 40 BAR
Maximum Air Inlet Temperature 45 Degree
Maximum Ambient Temperature 45 Degree
Control ELECTRONIC TIMER
Surface Treatment EPOXY PAINTED
Phase Single Phase
Frequency Cycle 50 Hz
Power 20 kW
Brand SUVI
Material Mild Steel
Usage/Application Industrial, Medical, Pharmaceutical, Food Processing, Painting, Powder Coating.
Industrial Air Dryers

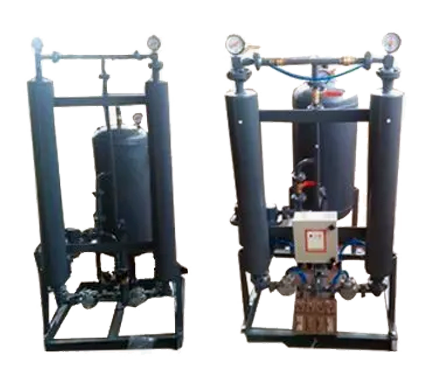

Heatless Air Dryers

Description :
A desiccant-based dryer that operates without heat to absorb moisture from compressed air.

Features :
Cost-effective, energy-efficient, and easy installation.

Applications :
Ideal for critical industries like oil and gas, petrochemicals, and medical facilities where a low dew point is essential.

Usage / Application Industrial
Drying Capacity 5 to 600 cfm
Dryer Technology Refrigerated
Dryer Horse Power 2 HP
Dryer Brand Suvi Enterprises
Minimum Output Dew Point -30 C
Automatic Grade Automatic
Design Standard
Maximum Pressure 10 bar
Warranty 12 months
Frequency 50 Hz
Phase Single Phase
Material Mild Steel
Air Inlet Temperature 40 Deg C
Operating Voltage 230 VAC
Power Source Electric
Surface Treatment Powder Coated
Heatless Air Dryers

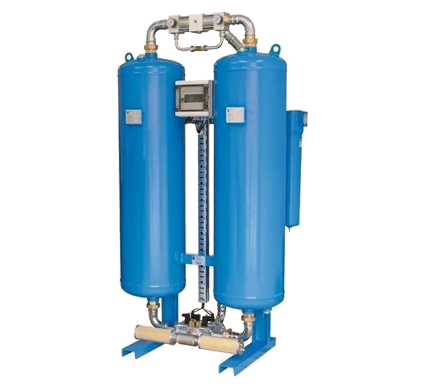

Desiccant Air Dryers

Description :
Uses a desiccant material to adsorb moisture and deliver ultra-dry compressed air.

Features :
oSuperior drying efficiency, compact design, and high operational reliability.

Applications :
Perfect for industries such as aerospace, electronics, and instrumentation that require extremely dry air.

Dryer Horse Power20 HP
Minimum Output Dew Point-30 C
Maximum Pressure4 bar
Colorblue/grey
Automatic GradeAutomatic, Semi-Automatic
DesignCustomized, Standard
Drying Capacity21 - 50 cfm
ConditionNew
Desiccant Air Dryers
Standard Operating Conditions

Min Operating Pressure : 4 Bar (g)
Max Operating Pressure : 10 Bar (g)
Std Inlet Temperature : 40◦c
Max Inlet Temperature : 55◦c
Rated Pressure Dew Point ( 7kg / cm2g ) : (-) 20◦c
Atmospheric Pressure Dew Point : (-)40◦c/-100◦f
Supply voltage : 230V AC, 50Hz
Initial Pressure Drop : 0.3kg/cm2(g)

Table : Inlet Flow Capacity
Mode L Capacity (NM³/HR) Capacity (SCFM) CONN BSP (F) Dimensions Width Dimensions Depth Dimensions Height Weight (KGS)
SR5 8 5 1/2" 305 300 800 30
SR10 16 10 1/2" 650 300 800 40
SR15 24 15 1/2" 650 300 1400 50
SR20 32 20 1/2" 560 420 1400 55
SR25 40 25 1/2" 750 420 1300 60
SR40 60 35 3/4" 700 420 1300 75
SR50 72 45 3/4" 740 430 1500 125
SR100 160 100 1" 840 530 1800 250
SR1502401501 ½"9805302000325
SR2003362001½"10005302000500
SR2503842502"12505502000525
SR6009606003"16507502300900
Three Step Treatment for quality Compressed Air :

# Cooling :
After cooler moisture separator, Air Receivers
# Filtering :
"PROTECTOR" series filters
# Drying :
Refrigeration - RAD PROTECTOR Series, Adsorption Heatless HTLD PROTECTOR Series

Industries We Serve
Our Air Dryers are trusted across a wide array of industries, including

AUTOMOTIVE :
Enhancing pneumatic tools and equipment.

Automotive

PHARMACEUTICALS :
Ensuring clean, dry air for manufacturing processes.

Pharmaceuticals

FOOD AND BEVERAGE :
Preventing moisture contamination in packaging and processing.

Food and Beverage

ELECTRONICS :
Delivering moisture-free air for sensitive applications.

Electronics

STEEL AND METAL :
Protecting machinery from corrosion and moisture damage.

Steel and Metal

CHEMICAL PROCESSING :
Ensuring safe and efficient operations.

Chemical Processing

OIL AND GAS :
Maintaining optimal air quality in critical applications.

Oil and Gas

TEXTTILES :
Preventing moisture-related defects in production.

Textiles

At Suvi Enterprises, our Air Dryers combine advanced technology, superior performance, and cost-effectiveness to meet your industrial needs efficiently. Partner with us to optimize your operations with reliable air-drying solutions.
